S-TKM Series
S-TKM series heat treatment furnace

Features

The S-TKM series furnace is a slim and compact continuous furnace designed to save space and significantly improve productivity as compared to batch type atmosphere heat treatment furnaces. The furnace uses high-efficiency regeneration gas burners and a new heat-insulated structure to save energy and improve environmental performance.

  • Compact and slim continuous furnace designed to save space.
  • Demonstrates productivity that is approximately three times that of conventional batch type furnaces.
  • Significantly reduces heating costs.

Specs

Model External dimensions (mm) In-furnace usable dimensions (mm) Heating method* Normal temperature Total weight per tray
Temperature-raising Carburizing Quenching
Overall length Overall width Overall height Length Width Overall height G E G E G E
STKM 80 6876 3000 5074 615 x 5 = 3075 660 600 ○ × ○ ○ ○ ○ 930 275
STKM 100 6910 2000 6257 615 x 5 = 3075 760 720 ○ × ○ ○ ○ ○ 930 360

* The specifications list can be scrolled horizontally.
* Heating method: "G" and "E" respectively stand for gas heating and electrical heating.

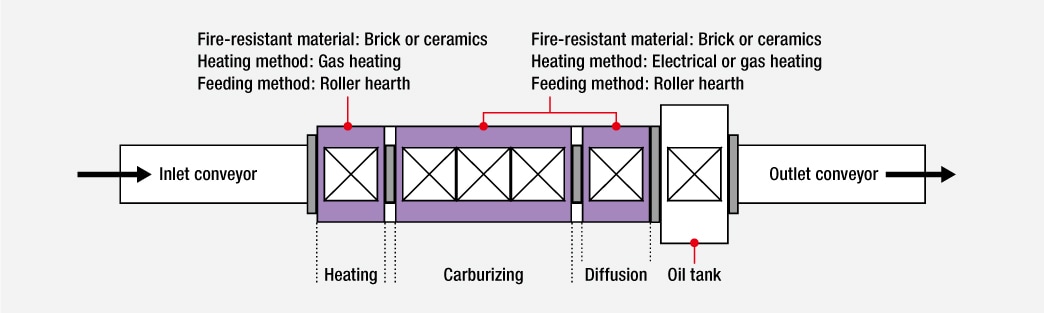

Structure

Fire-resistant material: Brick or ceramics, Heating method: Electrical or gas heating, Feeding method: Roller hearth
