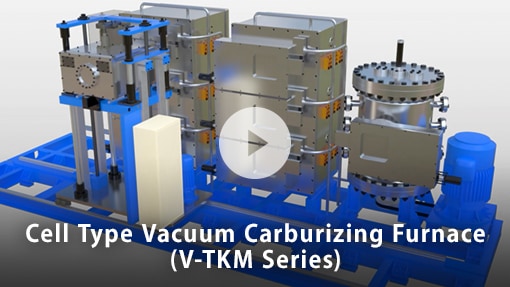

This product provides cell-type vacuum heat treatment by controlling the temperature and atmosphere independently for each chamber. It is possible to carry out burn-out treatment in the carbonless structure, and post-washing is not required if gas quenching is used. This product has enhanced quality characteristics and reduced lot-to-lot variation as a result of small-lot production.
Model | Throughput (kg) | Usable dimensions (mm) | Treatment | Treatment*1 | ||
---|---|---|---|---|---|---|
Width | Height | Length | ||||
V-1 | 20 | 200 | 50 | 300 | 1000°C | Vacuum carburizing |
V-2 *2 | 120 | 720 | 250 | 615 | 1000°C | Vacuum carburizing |
*1 In addition to vacuum carburizing, sintering and brazing can be carried out depending on specifications.
*2 Common to the DOWA TKM-100 incidental equipment.
